Screw On
Type
Snap
In Type
 |
|
|
Application:
- Mount the inlet to
your equipment.
- Power up your
equipment with a GFCI or
RCD that has an IEC
60320 C-13 connector.
|
|
|
Specifications:
- IEC 60320 C-14 Inlets
- 2 Pole 3 Wire Grounding
- 15 amps 250 Volts (UL/CSA)
- 10 amps 250 Volts
(International)
- Black thermoplastic, ploymid 6.6
- Brass terminals, tin plated
- Available in screw on panel
mount or snap-in panel mount
configurations
- CE mark, RoHS compliant
- Approvals:
UL, CSA
DEMKO, FI, IMQ, KEMA, NEMKO, OVE,
SEMKO, SEV, VDE
|
|
|
|
| Part Number |
Panel
Mount
Type |
Panel
Thickness |
Terminals |
Dimensions |
|
|
|
57011 |
Screw On |
n/a |
Quick Disconnect terminals, 6.3 x 0.8
mm(.250" x .032") |
see below |
|
57013 |
Screw On |
n/a |
Quick Disconnect terminals, 4.8 x 0.8
mm(.187" x .032") |
see below |
|
57015 |
Screw On |
n/a |
Solder Terminals, 3.5 mm x 0.8 mm (.138"
x .032") |
see below |
|
57311 |
Snap In |
1.5 mm |
Quick Disconnect terminals, 6.3 x 0.8
mm(.250" x .032") |
see below |
|
57313 |
Snap In |
1.5 mm |
Quick Disconnect terminals, 4.8 x 0.8
mm(.187" x .032") |
see below |
|
57315 |
Snap In |
1.5 mm |
Solder Terminals, 3.5 mm x 0.8 mm (.138"
x .032") |
see below |
|
|
|

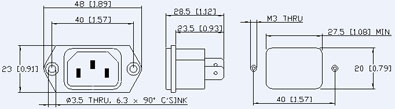

Dimensions- Screw On Panel Mount
Mounting Hole
|
|

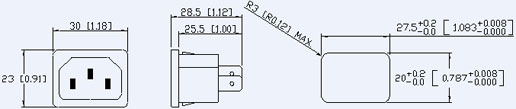

Dimensions- Snap-In Panel Mount
Mounting Hole |
| |
|
