 Flush
Mount Type
Surface Mount Type
 |
|
|
Application:
- Mount the inlet to
your equipment.
- Power up your
equipment with a GFCI or
RCD that has an IEC
60320 C-15A connector.
|
|
|
Specifications:
- IEC 60320 C-16A Inlets
- 2 Pole 3 Wire Grounding
- 15 amps 250 Volts (North
America)
- 10 amps 250 Volts
(International)
- White thermoplastic
- Screw terminals
- 155C Temperature Rating
- Available in flush mount or
surface mount configurations
- VDE, UL, CSA
- CE mark, RoHS compliant
- DIN 49458
|
|
|
|
| |
Amps |
|
| Part Number |
Panel
Mount
Type |
Color |
Temperature |
Approvals |
Certified |
UL/CSA |
International |
Dimensions |
|
|
|
111-10200 |
Flush |
White |
155C |
VDE, CSA |
CE, RoHS |
15 |
10 |
see below |
|
111-10205 |
Surface |
White |
155C |
VDE, CSA, UL |
CE, RoHS |
15 |
10 |
see below |
|

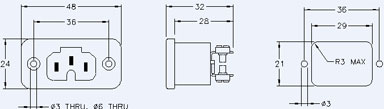

Dimensions-Flush Mount
Mounting Hole |
|

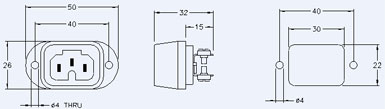

Dimensions- Surface Mount
Mounting Hole
|
|
|
|
