Accessories
IEC 60320 C-16 Inlets




Screw On Type




Snap In Type



Application:
  • Mount the inlet to your equipment.
  • Power up your equipment with a GFCI or RCD that has an IEC 60320 C-15 connector.
Specifications:
  • IEC 60320 C-16 Inlets
  • 2 Pole 3 Wire Grounding
  • 15 amps 250 Volts (UL/CSA)
  • 10 amps 250 Volts (International)
  • Black thermoplastic, ploymid 6.6
  • Brass terminals and contacts, tin plated
  • Available in screw on panel mount or snap-in panel mount configurations
  • CE mark, RoHS compliant
  • Approvals:
    UL, CSA
    DEMKO, FI, KEMA, NEMKO, OVE, SEMKO, SEV, VDE
Part Number Panel
Mount
Type
Panel
 Thickness
Terminals Dimensions
57021 Screw On n/a Quick Disconnect terminals, 6.3 x 0.8 mm(.250" x .032") see below
57025 Screw On n/a Quick Disconnect terminals, 4.8 x 0.8 mm(.187" x .032") see below
57023 Screw On n/a Solder Terminals, 3.5 mm x 0.8 mm (.138" x .032") see below
57321 Snap In 1.5 mm Quick Disconnect terminals, 6.3 x 0.8 mm(.250" x .032") see below
57325 Snap In 1.5 mm Quick Disconnect terminals, 4.8 x 0.8 mm(.187" x .032") see below
57323 Snap In 1.5 mm Solder Terminals, 3.5 mm x 0.8 mm (.138" x .032") see below

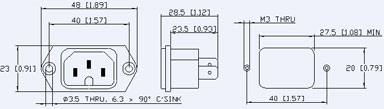

Dimensions- Screw On Panel Mount              Mounting Hole

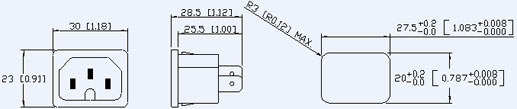

Dimensions- Snap-In Panel Mount                         Mounting Hole
