Accessories
IEC 60320 C-20 Inlets






Screw On Type




Snap In Type

Application:
  • Mount the inlet to your equipment.
  • Power up your equipment with a GFCI or RCD that has an IEC 60320 C-19 connector.
Specifications:
  • IEC 60320 C-20 Inlets
  • 2 Pole 3 Wire Grounding
  • 20 amps 125 Volts, 16 amps 250 Volts (UL / CSA)
  • 16 amps 250 Volts (International)
  • Black thermoplastic
  • Brass terminals and contacts, nickel plated
  • Available with Quick Disconnect Terminals or Solder Terminals
  • Available in screw on panel mount or snap-in panel mount configurations
  • 70C Temperature Rating
  • Available in flush mount or surface mount configurations
  • Approvals listed below
  • CE mark, RoHS compliant
Part Number Panel
Mount
Type
Panel
 Thickness
Terminals Approvals
57081 Screw On n/a Quick Disconnect terminals, 6.3 x 0.8 mm(.250" x .032") CSA, DEMKO, FI, KEMA, NEMKO
        SEMKO, SEV, UL, VDE
57082 Screw On n/a Solder Terminals, 4.0 mm x 0.8 mm (.157" x .032") CSA, DEMKO, FI, KEMA, NEMKO
        SEMKO, SEV, UL, VDE
57080 Screw On n/a Screw / Compression Terminals CSA, SEV, UL, VDE
57740 Snap In 1.5 mm Quick Disconnect terminals, 6.3 x 0.8 mm(.250" x .032") CSA, UL, VDE
57745 Snap In 1.5 mm Solder Terminals, 4.0 mm x 0.8 mm (.157" x .032") CSA, UL, VDE

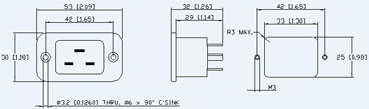

Dimensions- Screw On Panel Mount      Mounting Hole

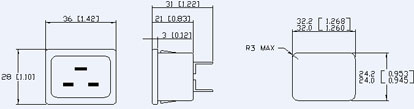

Dimensions- Snap-In Panel Mount            Mounting Hole
