SKU: R30-FC13-01098

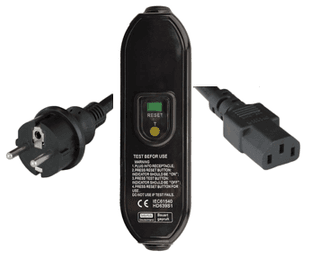

2.5m European Schuko CEE7/7 Plug to In-Line RCD to IEC60320 C13 10A 250V 30mA Trip Level Power Cord - BLACK
Europe Schuko CEE7/7 to IEC60320 C13 RCD Power Cords
R30-FC13-01098
Per unit · USD
Made to order
It’s built after you order — ship date confirmed with your order.
Need a different length, gauge, or connector?Request a custom quote →
Volume pricing
| Quantity | Unit price | Savings |
|---|---|---|
| 1–99 | $41.54 | List price |
| 100–249 | $37.39 | Save 10% |
| 250–499 | $33.23 | Save 20% |
| 500+ | $29.08 | Save 30% |
B2B & OEM services
✓Volume pricing & NET terms — breaks start at 10 units
✓BOM partner for OEMs — we work from your spec sheet
✓Approvals expert — UL, CSA, CE, RoHS support available
Hi-pot tested
Every cord we build is hi-pot and continuity tested.
Engineering-led
In-house engineering and compliance set the procedures.
Ships same day
In-stock orders out of East Windsor, CT before 2:30 PM ET.
30-day returns
Plus lifetime workmanship warranty.
Certifications & Compliance
About this product
2.5m European Schuko CEE7/7 Plug to In-Line RCD to IEC60320 C13 10A 250V 30mA Trip Level Power Cord - BLACKRCD (Residual Current Device). In Line style configuration. Built-in TEST and RESET buttons. Pulse current sensitive. Robust construction, double pole breaking. Manual reset upon power loss. Rated 16A, 250 VAC, 50 Hz (Depending upon Cordage). 10 and 30 mA Residual Current Trip Levels available, 30 mA is standard. Basic Dimensions: 47x54x160 mm. Trips in no more than 30 mS. PG11 waterproof connector and a clamping ring seal bushing. IP65 protection (rated for outdoor use; dustproof and low pressure hosedowns). Temperature range -25C to +40C. Lighted power on indication. Available in black, white, or gray colors (black is standard). Tested according to DIN VDE 0661 and EN61540 standards. Design conformance: BS7071. CE certified and RoHS compliant.
Specifications
| Plug (Male) | European Schuko CEE7/7 - Straight |
| Connector (Female) | IEC 60320 C13 |
| Current (Amps) | 10 Amps |
| Voltage (Volts) | 250 volts |
| Cordage | 1.0mm2 -3c H05VV-F |
| Length | 2.5 meters |
| Color | Black |
| Certifications | RoHS |
| Approvals | Component Approvals |
| Trip Level (mA) | 30 mA |
Physical
| weight lbs | 1.95 |
- Download PDF
Spec sheet (PDF)
Specification sheet for this part number — opens the PDF, or lets you request a drawing from engineering when one is not on file yet
3 alternate configurations available in this product line:
R10-FD13-01098
2.5m European Schuko CEE7/7 DOWN ANGLE Plug to In-Line RCD to IEC60320 C13 10A 250V 10mA Trip Level Power Cord - BLACK
R10-FC13-01098
2.5m European Schuko CEE7/7 Plug to In-Line RCD to IEC60320 C13 10A 250V 10mA Trip Level Power Cord - BLACK
R30-FD13-01098
2.5m European Schuko CEE7/7 DOWN ANGLE Plug to In-Line RCD to IEC60320 C13 10A 250V 30mA Trip Level Power Cord - BLACK
Typical Application
Power source
2.5 meters Black
Powered equipment
Connects a European Schuko CEE7/7 - Straight source to a C13 device inlet. Rated 10 Amps at 250 volts.
