GFCI and RCD protection, explained
13
configurations
End of life
GFCI and RCD is end of life.
Not sure which cord you need?
Answer a few quick questions and we’ll narrow it down for you.
Every cord in this family as a table — trip level, reset, form, ends and rating. The cords are sold on worldcordsets.com; the guides that explain them are in the library.
| Trip | Reset | Form | Plug | End | Volts | Amps | Length | Part | Buy |
|---|---|---|---|---|---|---|---|---|---|

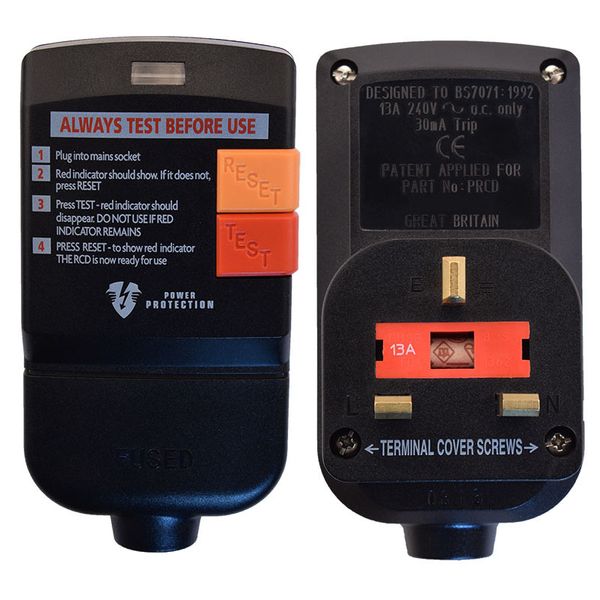

| 30 mA | Automatic reset | Rewireable | UK BS1363 ANGLED | Your cord | 240V | 13 A | — | RPH-A-UK-30 | $21.54 on worldcordsets.com |

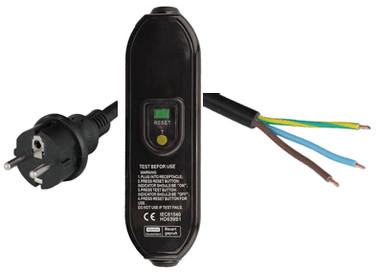

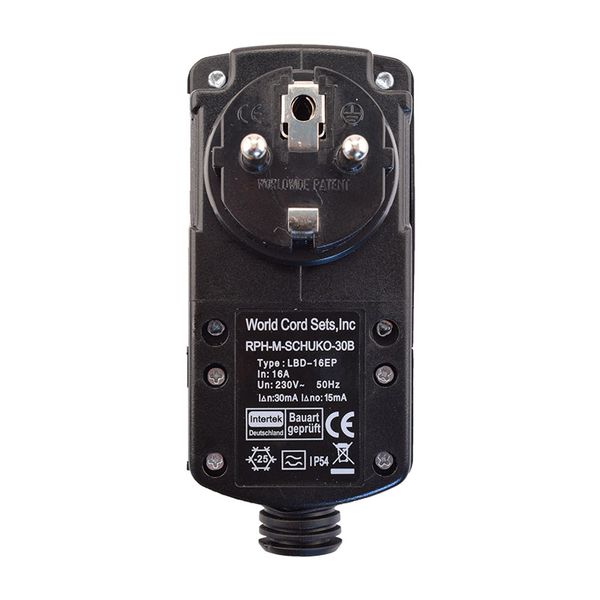

| 30 mA | Manual reset | Rewireable | European Schuko CEE7/7 - Straight | Your cord | 250 V | 16 A | — | RPH-M-SCHUKO-30B | $32.31 on worldcordsets.com |
| 10 mA | Manual reset | Rewireable | European Schuko CEE7/7 - Straight | Your cord | 250 V | 16 A | — | RPH-M-SCHUKO-10B | $32.31 on worldcordsets.com |
| 30 mA | Manual reset | Rewireable | UK BS1363 ANGLED | Your cord | 250 V | 13 A | — | RPH-M-UK-30B | $36.46 on worldcordsets.com |
| 10 mA | Manual reset | Rewireable | UK BS1363 ANGLED | Your cord | 250 V | 13 A | — | RPH-M-UK-10B | $36.46 on worldcordsets.com |

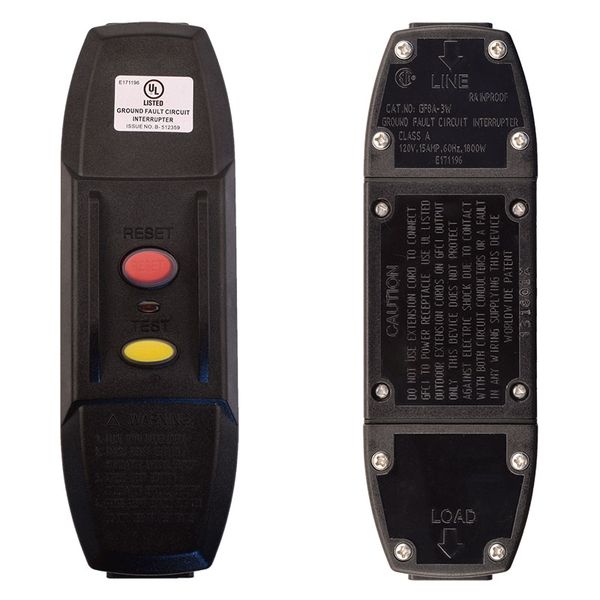

| — | Automatic reset | Rewireable | — | Your cord | 120V | 15 A | — | IL-A-15125 | $20.77 on worldcordsets.com |
| — | Automatic reset | Rewireable | — | Your cord | 120V | 10 A | — | IL-A-10125 | $20.77 on worldcordsets.com |
| — | Automatic reset | Rewireable | — | Your cord | 120V | 13 A | — | IL-A-13125 | $31.15 on worldcordsets.com |
| 4-6 mA | Manual reset | Rewireable | — | Your cord | 120V | 10 A | — | IL-M-10125 | $20.77 on worldcordsets.com |
| 4-6 mA | Manual reset | Rewireable | — | Your cord | 120V | 13 A | — | IL-M-13125 | $20.77 on worldcordsets.com |
| 4-6 mA | Manual reset | Rewireable | — | Your cord | 120V | 15 A | — | IL-M-15125 | $20.77 on worldcordsets.com |
| 4-6 mA | Manual reset | Rewireable | — | Your cord | 120V | 20 A | — | IL-M-20125 | $40.00 on worldcordsets.com |
| 4-6 mA | Manual reset | Rewireable | — | Your cord | 120/240V | 20 A | — | IL-M-20240-B | $71.55 on worldcordsets.com |
| 4-6 mA | Manual reset | Rewireable | — | Your cord | 120/240V | 20 A | — | IL-M-20240-Y | $71.55 on worldcordsets.com |
| — | Manual reset | Rewireable | — | Your cord | 240V | 20 A | — | IL-M-20240-Y.V2 | $115.99 on worldcordsets.com |

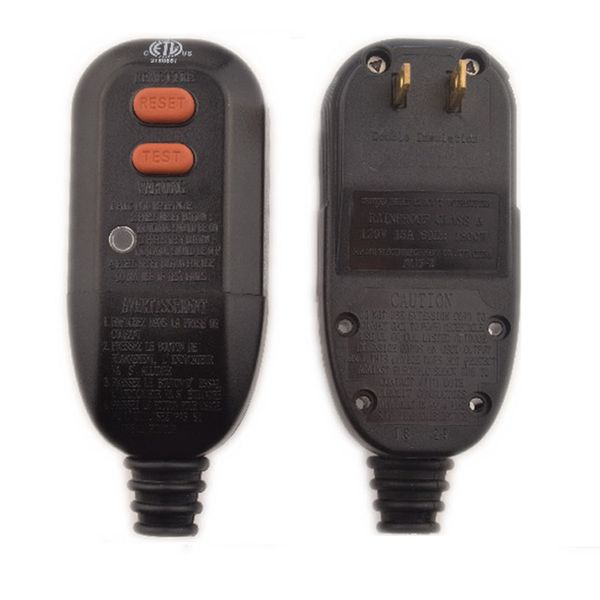

| — | Automatic reset | Rewireable | NEMA 1-15P | Your cord | 120V | 15 A | — | PH-A-15125-2W | $15.57 on worldcordsets.com |
| — | Automatic reset | Rewireable | NEMA 5-15P | Your cord | 120V | 8 A | — | PH-A-08125 | $15.57 on worldcordsets.com |
| — | Automatic reset | Rewireable | NEMA 5-15P | Your cord | 120V | 15 A | — | PH-A-15125 | $15.57 on worldcordsets.com |
| — | Automatic reset | Rewireable | NEMA 5-15P | Your cord | 120V | 10 A | — | PH-A-10125 | $15.57 on worldcordsets.com |
| — | Automatic reset | Rewireable | NEMA 5-15P | Your cord | 120V | 13 A | — | PH-A-13125 | $15.57 on worldcordsets.com |

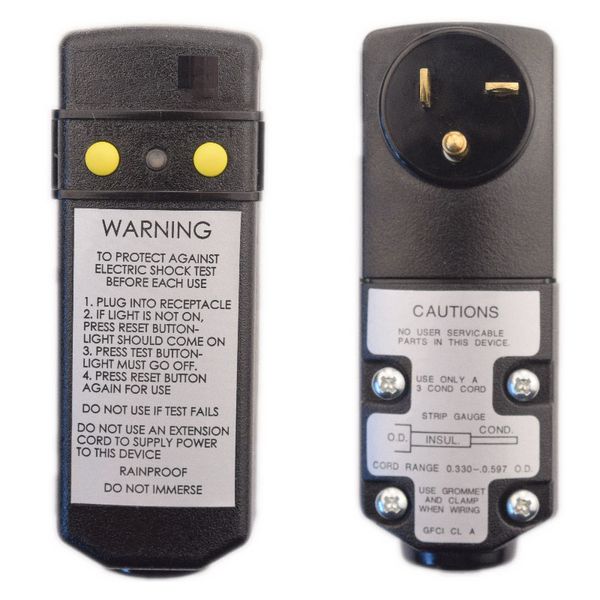

| — | Automatic reset | Rewireable | NEMA 5-20P | Your cord | 120V | 20 A | — | PH-A-20125 | $32.31 on worldcordsets.com |
| 4-6 mA | Manual reset | Rewireable | NEMA 5-15P | Your cord | 120V | 15 A | — | PH-M-15125 | $16.92 on worldcordsets.com |
| 4-6 mA | Manual reset | Rewireable | NEMA 5-15P | Your cord | 120V | 13 A | — | PH-M-13125 | $16.92 on worldcordsets.com |
| 4-6 mA | Manual reset | Rewireable | NEMA 5-15P | Your cord | 120V | 10 A | — | PH-M-10125 | $16.92 on worldcordsets.com |
| 4-6 mA | Manual reset | Rewireable | NEMA 5-20P | Your cord | 120V | 20 A | — | PH-M-20125-B | $46.15 on worldcordsets.com |
All 13 part numbers in GFCI and RCD protection, explained — every color and length, one link each
About GFCI and RCD protection, explained
A Ground Fault Circuit Interrupter (GFCI), also known as a Ground Fault Interrupter (GFI) or Residual Current Device (RCD) shuts off an electric power circuit when it detects current is flowing along as unintended path. Upon detecting power loss, the GFCI or RCD cable will shut the power off. We carry Auto Reset and Manually Reset GFCI devices, with the difference being what action the GFCI device takes after having been tripped. In a Manual Reset GFCI, the power will remain off until it is reset manually, while the Auto Reset will automatically turn back on after being tripped.
The plugs and connectors in this collection
What each end is, what it mates with, and where to find every cord built on it.
Plug · NEMA
NEMA 5-15P
- 15 Amps
- 125 volts
On 7 of the cords here (28%)
The NEMA 5-15P is a 3 Wire grounded plug featuring two blades (can be equal or unequal widths due to the ground pin forcing polarity) and one ground pin rated up to 125V AC and 15 Amps. The NEMA 5-15P is your standard household plug used for to connect small appliances such as TV's, Microwaves, hairdryers, etc to a wall outlet. The NEMA 5-15P is compatible with a Nema 5-20R T-Slot outlet, which is commonly found in new home installations.
Mates with NEMA 5-15R Outlet
Plug · International
UK BS1363 ANGLED
- 13 Amps
- 250 volts
On 3 of the cords here (12%)
The UK BS1363 plug type configuration is rated for 250VAC and 13 Amperes of power in the United Kingdom. It is also classified as the IEC type G, and is the standard plug type for electrical appliances in the United Kingdom. It is the only plug type to have an internally wired fuse in the plug body, adding an additional layer of electrical protection.
Mates with UK BS1363 Outlet
Plug · NEMA
NEMA 5-20P
- 20 Amps
- 125 volts
On 2 of the cords here (8%)
The NEMA 5-20P is a 3 Wire grounded plug featuring two blades and one ground pin rated up to 125V AC and 20 Amps. The NEMA 5-20P is used in applications that require higher power draw such as large refrigerators, space heaters,large kitchen mixers, etc. The 5-20R T-SLot receptacle allows you to plug in either a 5-20P or a 5-15P plug, allowing greater flexibility. In modern home installations, 5-20R T-Slot receptacles are often used when 20A circuits are installed due to flexibility of being downward compatable with the 5-15P.
Mates with NEMA 5-20R Outlet
Plug · International
European Schuko CEE7/7 - Straight
- 16 Amps
- 250 volts
On 2 of the cords here (8%)
The plug (MALE) is a Type F Schuko CEE7/7. It fits both E (France) and F (European / Germany) type outlets (sockets). Available in straight or down/up angle orientation. The plug has two round pins (line and neutral) each 4.8 mm diameter, 19 mm long and spaced 19 mm apart. The plug also has two flat areas (top and bottom sides) and a female contact for the ground.
Mates with Schuko CEE7/7 Outlet
About GFCI and RCD protection, explained
A ground-fault circuit interrupter compares the current leaving on the hot conductor with the current returning on the neutral. If they differ — because some of it is going through a person or through water to earth — it opens the circuit in a few milliseconds. In North America the device is a GFCI and trips at 4–6 mA (UL 943, Class A); in IEC countries the same idea is a residual current device, RCD, and the portable ones trip at 10 mA or 30 mA. Neither one is a fuse: they do nothing about overload, only about current taking the wrong path.

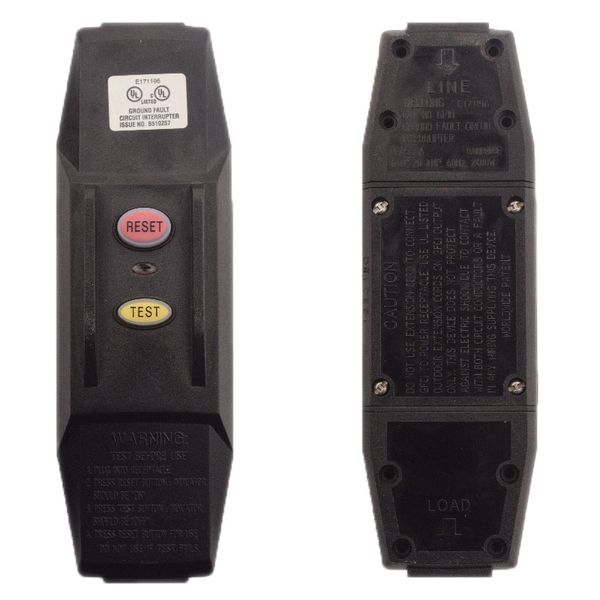

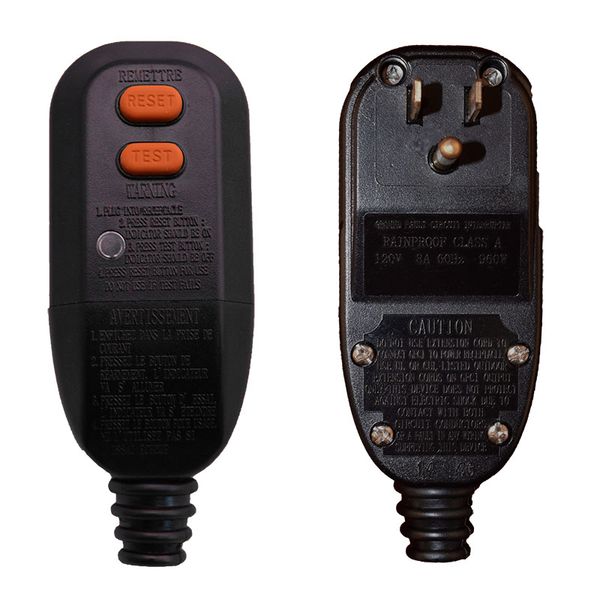

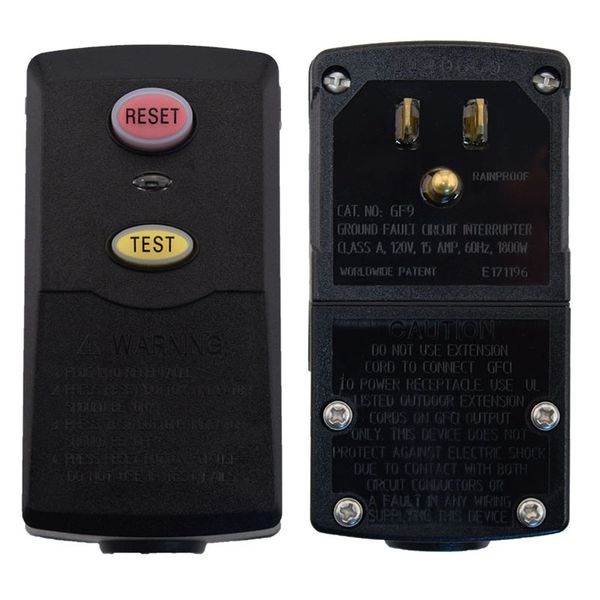

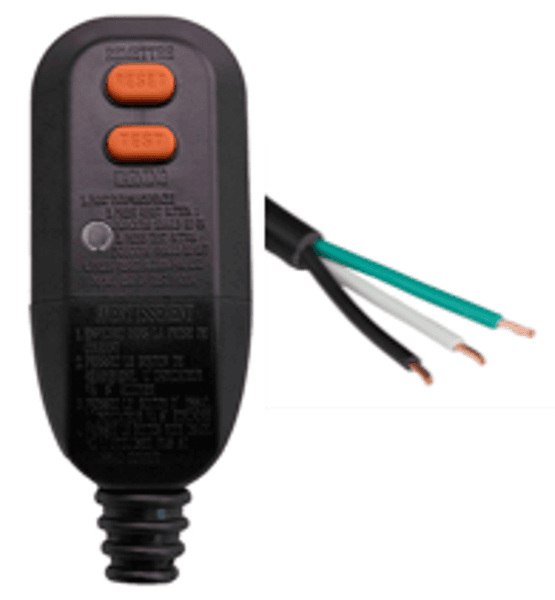

Where the protection sits is the practical choice. In the plug head: the whole cord downstream is protected, the TEST / RESET buttons are at the wall. In-line: a module partway down the cord, reachable at the machine. Rewireable (user-attachable): you fit the GFCI to your own cable. Manual reset stays off after a trip or a power cut until someone presses RESET — the choice for tools that must not restart by themselves. Automatic reset comes back when power returns — the choice for freezers and pumps that must not stay dead.
GFCI.com is a World Cord Sets education site. The guides explain; the cords are sold on worldcordsets.com, and every product page there links back to the guide that explains it.
Current rating
8–20 Amps
Voltage rating
120–250 V
Certifications & compliance
- UL
- CE
- RoHS
- BSI
- Every cord we build is hi-pot tested
- Same-day shipping by 2:30 PM ET
- NET 30/60/90 for approved accounts
- In-house engineering and compliance support
Frequently asked questions
- What certifications do these power cords carry?
- UL and cUL-listed cord sets across the catalog, with 30+ international approval marks (VDE, ENEC, PSE, SAA, CCC, KC and more) on country-specific cords. The approvals each part carries are listed on its product page; documentation is available from sales.
- Do you require a minimum order quantity?
- No. We sell from 1 cord to 100,000. Volume discounts apply automatically at quantity breaks — you'll see pricing tiers on every product page.
- Can I get a custom length or color?
- Yes. Custom lengths and non-standard colors are hand-terminated in our Connecticut shop — typically 3–4 business days from in-stock components. Call (860) 763-2100 or submit a quote request with your specs.
- How fast does this ship?
- In-stock orders placed by 2:30 PM ET ship the same day via FedEx or UPS. All standard configurations are stocked in East Windsor, CT.
