AUTOMATIC RESET - User Attachable GFCI - Plug Head Style
6
configurations
Not sure which cord you need?
Answer a few quick questions and we’ll narrow it down for you.

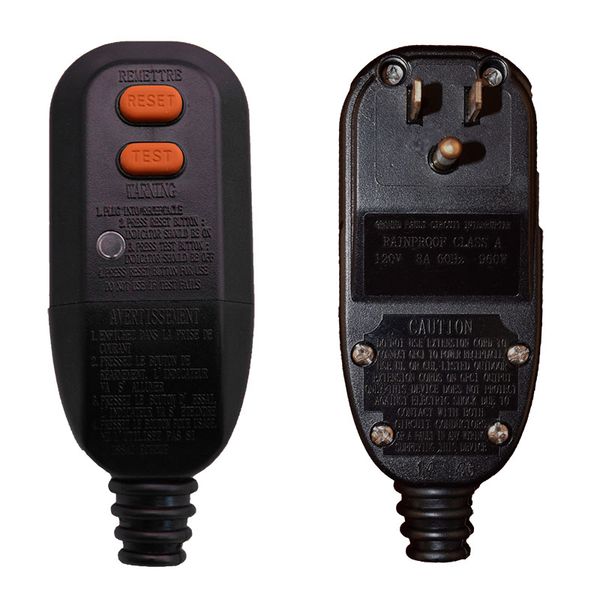

About AUTOMATIC RESET - User Attachable GFCI - Plug Head Style
Auto Reset (Automatic Rest) GFCI (Ground Fault Circuit Interrupter) plug heads are used in applications such as home appliances and industrial equipment, cleaners, spas, vending machines, ticketing kiosks, change machines, and more. As the name implies, an Automatic Reset GFCI will automatically reset after being tripped once the current flowing back into the device matches the current flowing out of the device (when normal operation of the circuit has resumed). This is useful in applications where the equipment is not in use by a human, and that prolonged downtime to the equipment is potentially hazardous. User Attachable Plug Heads allow you to add GFCI protection to an existing cord by cutting off the existing plug (male) and wiring on the GFCI. Standard amperages are 8AMP, 10AMP, 13AMP and 15AMP. Standard color is black. Standard plugs are NEMA 1-15P and NEMA 5-15P.
The plugs and connectors in this collection
What each end is, what it mates with, and where to find every cord built on it.
Plug · NEMA
NEMA 5-15P
- 15 Amps
- 125 volts
On 4 of the cords here (67%)
The NEMA 5-15P is a 3 Wire grounded plug featuring two blades (can be equal or unequal widths due to the ground pin forcing polarity) and one ground pin rated up to 125V AC and 15 Amps. The NEMA 5-15P is your standard household plug used for to connect small appliances such as TV's, Microwaves, hairdryers, etc to a wall outlet. The NEMA 5-15P is compatible with a Nema 5-20R T-Slot outlet, which is commonly found in new home installations.
Mates with NEMA 5-15R Outlet
Plug · NEMA
NEMA 5-20P
- 20 Amps
- 125 volts
On 1 of the cords here (17%)
The NEMA 5-20P is a 3 Wire grounded plug featuring two blades and one ground pin rated up to 125V AC and 20 Amps. The NEMA 5-20P is used in applications that require higher power draw such as large refrigerators, space heaters,large kitchen mixers, etc. The 5-20R T-SLot receptacle allows you to plug in either a 5-20P or a 5-15P plug, allowing greater flexibility. In modern home installations, 5-20R T-Slot receptacles are often used when 20A circuits are installed due to flexibility of being downward compatable with the 5-15P.
Mates with NEMA 5-20R Outlet
Plug · NEMA
NEMA 1-15P
- 15 Amps
- 125 volts
On 1 of the cords here (17%)
The NEMA 1-15P is a non-grounded plug type rated for 125VAC and 15 Amps in North America. The standard configuration is commonly used to power small devices and power supplies for voltage adapters.
Mates with NEMA 5-15R Outlet
You are on the NEMA 1-15P family page.
About AUTOMATIC RESET - User Attachable GFCI - Plug Head Style
World Cord Sets supplies automatic reset - user attachable gfci - plug head style from our East Windsor, Connecticut headquarters, with manufacturing across US and overseas facilities. Cords are tested and certified to spec before shipment. We stock 6+ configurations and build custom cords to order — hand-terminated builds from in-stock components typically ship in 3–4 business days. In-stock orders placed by 2:30 PM ET ship the same day from our Connecticut warehouse.
Current rating
8–20 Amps
Voltage rating
120V
Certifications & compliance
- UL
- Every cord we build is hi-pot tested
- Same-day shipping by 2:30 PM ET
- NET 30/60/90 for approved accounts
- In-house engineering and compliance support
Frequently asked questions
- What certifications do these power cords carry?
- UL and cUL-listed cord sets across the catalog, with 30+ international approval marks (VDE, ENEC, PSE, SAA, CCC, KC and more) on country-specific cords. The approvals each part carries are listed on its product page; documentation is available from sales.
- Do you require a minimum order quantity?
- No. We sell from 1 cord to 100,000. Volume discounts apply automatically at quantity breaks — you'll see pricing tiers on every product page.
- Can I get a custom length or color?
- Yes. Custom lengths and non-standard colors are hand-terminated in our Connecticut shop — typically 3–4 business days from in-stock components. Call (860) 763-2100 or submit a quote request with your specs.
- How fast does this ship?
- In-stock orders placed by 2:30 PM ET ship the same day via FedEx or UPS. All standard configurations are stocked in East Windsor, CT.
